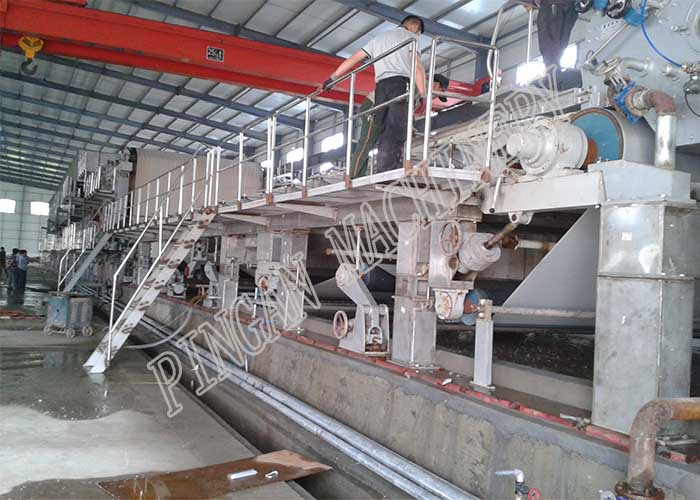

Commercial Fluting Paper Corrugated Production Line With AC Variable Frequency

3200 corrugated fluting paper making machinery complete production line and turnkey project

Description

This paper making machine is used to produce high strength fluting paper and fluting paper based on the GSM of 50-185g/m² . This 3200 corrugated fluting paper making machinery is composed of the floowing parts:

Process flow of the 3200 corrugated fluting paper making machinery

This paper making machine is suitable to produce fluting paper and high strength fluting paper, which is 3200mm net paper width and paper weight 50-185g/ ㎡. Whole production flow as below:

Air cushion type headbox→ One wire →Two big jumbo roll press with double felt blind hole →Dryer cylinder group → sizing machine→ Horizontal reeling machine

Structure of this 3200 corrugated fluting paper making machinery

Main technical parameters

1. Output: high trenghth fluting paper and fluting paper
2. Gammage: 50-185g/m²
3. Net paper width: 3200mm
4. Reeling width: 3260mm
5. Headbox lip width: 3500mm
6. Designed speed: 300m/min
7. Dynamic balance speed: 400m/min
8. Working speed: 180-270m/min
9. Crawl speed: 25m/min
10. Gauge: 4300mm
11. Layout: one floor

Technology Condition

Raw material: OCC. Lateral shrinkage(average):≤3.5-4.5%. Web moisture profile difference: ≤±1.0%. Deviation of basis weight in cross direction: ≤±1.5%. Compressed air pressure: ≤0.6MPa

3200 corrugated fluting paper making machinery parts manufacturing request

Wire leading roll of wire section, guide roll and spread roll of press section guide roller and paper leading roll of dryer section.

1. Dose not allow grith welds in roll.
2. Before processing, the roll body must correct shape.
3. Wire section, guide roll of press section, spread roll, dryer roll, paper leading roll: Before processing, the whole roll must annealing treatment.

Frame:

1. Before welding, sheet and tube to rectify straight.
2. Before welding, sheet and tube to rectify straight.

Casting parts:

1. Big jumbo press roll, dryer cylinder: after casting, thermal insulation treatment to eliminate stress.
2. Other casting: after casting, annealing heat treatment to eliminate the stress.

Spindle nose of rolls:

1. Wire leading roll of wire section, guide roll and spread roll of press section, guide roll and paper leading roll of dryer section: Tempering and hardening before precision machining.
2. Bearing taper surface of all the bearing and roller must grinding, the contact surface more than 80%.
